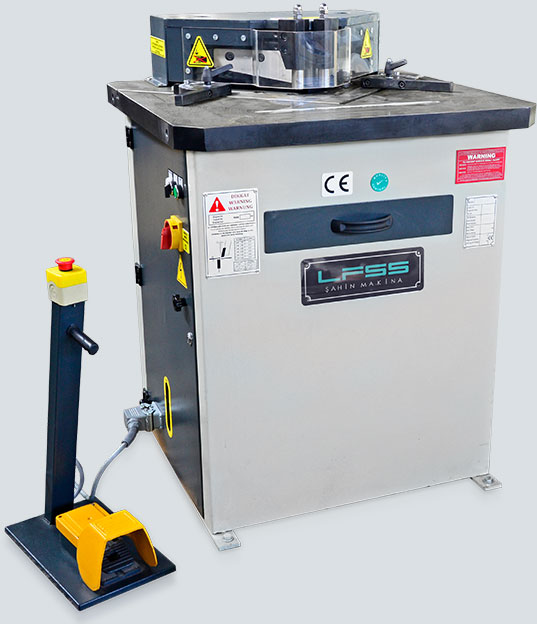

Corner Notching Machines, Köşe Kesme MakinalarıHNMHYDRAULIC FIXED ANGLE CORNER NOTCHERS

6 F / 4 F

  • GENERAL FEATURES

• The HNM-6 F hydraulic notcher can cut up to 6 mm.
• The biggest notcher size is 250x250mm.
• The notching angle axes in 90° with high notching speed.
• The hydraulic notcher has compact structure, small volume and convenient operation

  • GENERAL AND OPTIONAL FEATURES

GENERAL

OPTIONAL

1
HNM Hidrolik Sabit Açılı Köşe Kesme, Hydraulic Fixed Angle Corner Notchers
  • TECHNICAL FEATURES

HNM Hidrolik Sabit Açılı Köşe Kesme, Hydraulic Fixed Angle Corner Notcher
HNM6 F / 6mm4 F / 4mm
Steel Cuttingmm 90°64
Stainless Cuttingmm 90°32,5
PowerkW44
Table Dimensionmm800×750685×590
Cutting Angle°9090
Max. Cutting Per MinuteX2550
Blade Lengthmm250×250197×197
Oil Tank Capacitylt.3545
Max. Working Pressurebar200120
L Lengthmm10101120
W Widthmm8501200
H Heightmm14001600
Weightkg630500
