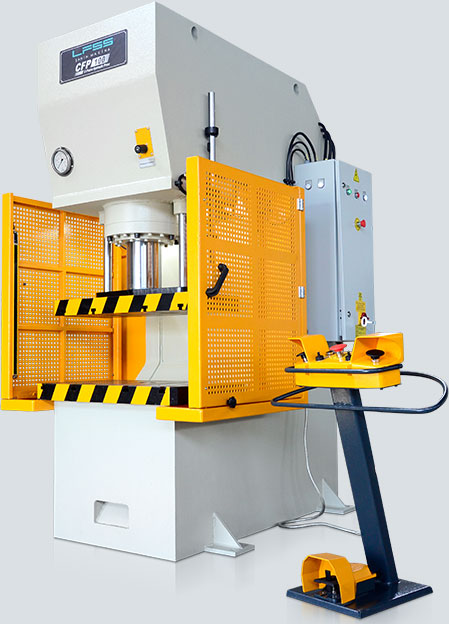

CFPC-FRAME PRESS
30 Ton / 60 Ton / 100 Ton
• Easy to operate
• Steel construction welded frame
• Ability to stop any position
• Manometer
• Relief valve for overloading
• Stepless stroke adjustment
• T-slot top and bottom table
• Two guide piston both side
• Safety barrier
• Two hand control
GENERAL
OPTIONAL
1
2
3
4
5
6
7
8
9
| CFP | 30 | 60 | 100 | |
|---|---|---|---|---|
| Press Power | kN | 300 | 600 | 1000 |
| Stroke | mm | 400 | 400 | 400 |
| Max. Working Pressure | bar | 244 | 236 | 263 |
| Advance Speed | mm/sec | 28 | 30 | 23 |
| Working Speed | mm/sec | 5,5 | 6 | 5,5 |
| Return Speed | mm/sec | 23 | 47 | 27 |
| Gap Depth | mm | 880 | 880 | 650 |
| Throat Depth | mm | 650 | 650 | 420 |
| Working Length | mm | 700 | 700 | 800 |
| Bottom Table Dimension | mm | 600x700x45 | 600x700x45 | 530x800x75 |
| Top Table Dimension | mm | 350x700x45 | 350x700x45 | 350x800x45 |
| Hole Diameter | mm | 100 | 100 | 100 |
| Motor Power | kW | 3 | 7,5 | 11 |
| Oil Tank | lt | 90 | 90 | 130 |
| L Length | mm | 1150 | 1230 | 1250 |
| W Width | mm | 1550 | 1570 | 1570 |
| H Height | mm | 2200 | 2250 | 2250 |
| Weight | kg | 2620 | 3520 | 5400 |
