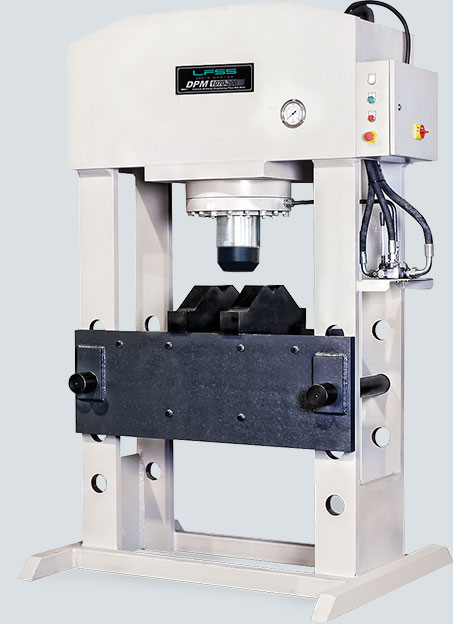

Hydraulic Straightening Presses, Hidrolik Doğrultlma PresleriDPMFIXED PISTON MOTORIZED 200 TON

1070/1570-200 200 Ton

  • GENERAL FEATURES

• Easy to operate
• Steel construction welded frame
• Ability to stop any position
• Manometer
• Relief valve for overloading
• Joystick control
• Adjustable bottom tables
• Table up-down movement attachment
• A pair of V-blocks

  • GENERAL AND OPTIONAL FEATURES

GENERAL

OPTIONAL

1
2
3
4
5
6
7
DPM 200 Ton Sabit Piston Motorlu Pres, Fixed Piston Motorized Presses
  • TECHNICAL FEATURES

DPM 200 Ton Sabit Piston Motorlu Pres, Fixed Piston Motorized Press
DPM 200 TON1070-2001570-200
Press PowerkN20002000
Max. Working Pressurebar283283
Strokemm300300
Diameter of Piston ArmØmm300×210300×210
Advance Speedmm/sec1010
Working Speedmm/sec55
Return Speedmm/sec2020
Motor PowerkW1515
A Hole Distancemm250250
B Working Areamm10701570
C Depthmm440440
L Lengthmm17502250
W Widthmm11651165
H Heightmm28602860
Weightkg40504500
