Hydraulic Straightening Presses, Hidrolik Doğrultma PresleriDPM-KMOBILE PISTON MOTORIZED

1070/1570-150 150 Ton
1070/1570-100 100 Ton
1040-80 80 Ton
1040-60 60 Ton
775 – 30 30 Ton

  • GENERAL FEATURES

• Easy to operate
• Steel construction welded frame
• Ability to stop any position
• Manometer
• Relief valve for overloading
• Dual speed joystick control
• Adjustable bottom tables
• Table up-down movement attachment
• A pair of V-blocks
• Ball bearing mobile piston

  • GENERAL AND OPTIONAL FEATURES

GENERAL

OPTIONAL

1
2
3
4
5
6
7
8
9
10

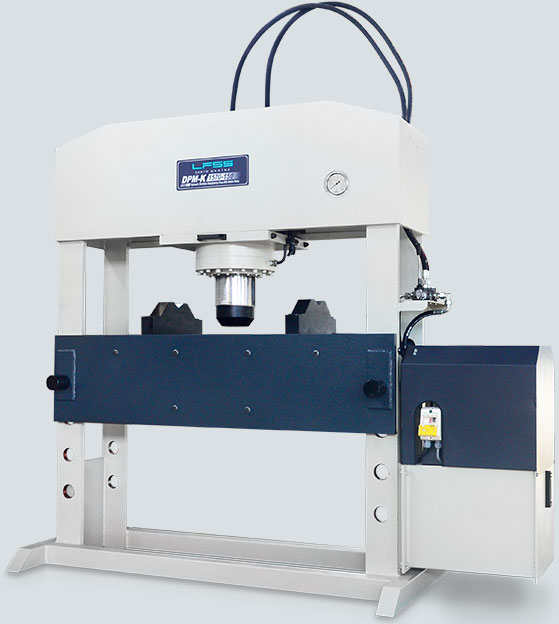

DPM-K Gezer Piston Motorlu Presler, Mobile Piston Motorized Presses
  • TECHNICAL FEATURES

DPM-K Gezer Piston Motorlu Presler, Mobile Piston Motorized Presses
DPM-K775-301040-601040-801070-1001570-1001070-1501570-150
Press PowerkN3006008001000100015001500
Max. Working Pressurebar244236255263263244244
Strokemm200250250300300300300
Diameter of Piston ArmØmm125×80180×120200×120220×160220×160280×200280×200
Advance Speedmm/sec7,5888899
Working Speedmm/sec5455555
Return Speedmm/sec10101010101010
Motor PowerkW345,55,55,51111
A Hole Distancemm165165165190190190190
B Working Areamm775104010401070157010701570
C Depthmm190260260315315360360
L Lengthmm1500171018102110263021102630
W Widthmm7007007501000100010001000
H Heightmm1800210021002430243024802480
Weightkg4008008351500160018702100
